8200 Lumens High Brightness Professional Short Throw Laser
Projector
The SMX MX-820ST projector boasts an impressive brightness of 8,200
lumens and a WUXGA resolution. It is designed for 24/7 operation
and utilizes a laser light source, providing maintenance-free
performance for up to 30,000 hours in Eco mode.
Key features include keystone correction, lens shift, and built-in
dual 10W speakers. With high brightness, color accuracy, and quiet
operation, this projector is ideal for various professional
settings, including simulation, edge blending, projection mapping,
and immersive installations.
The added control flexibility of HDBaseT and LAN makes the SMX
MX-820ST an economical and easy-to-install solution that can be set
up and left to operate without further attention.

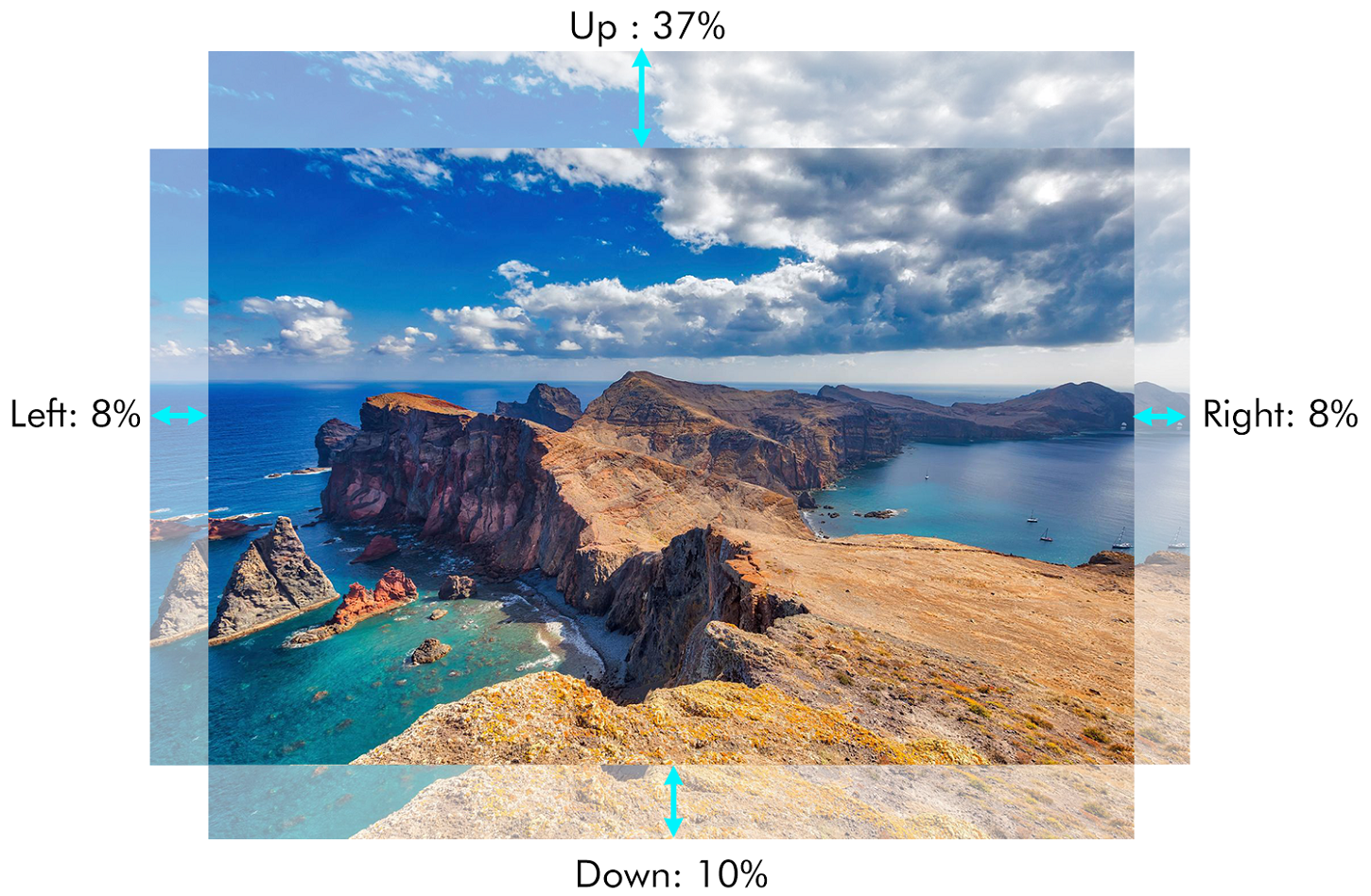

Lens shift
Simplify installation with full lens shift, which provides a wider
range of projector placement possibilities. This makes it easier to
position the projector in your room and enables a wider range of
screen size options.
Keystone Correction
Adjust the keystone in both the vertical planes. You can
individually warp each corner of the image to create a perfectly
square image. Ideal for image stacking, uneven walls, or where
projector placement is awkward and needs to be installed at an
angle.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network, and
control commands all delivered on a single CAT-type cable capable
of up to 100 meters/328 feet without signal loss make installation
hassle-free. HDBaseT™ simplifies cabling requirements and reduces
installation complexity, saving both time and costs.
360 projection
With 360° projection, images can be displayed in any orientation,
giving you the freedom and versatility to install this projector in
the desired location.
Full 3D
SMX projectors can display true 3D content from almost any 3D
source, including 3D compatible graphics cards, 3D broadcasting,
and the latest generation 3d media servers.
Wired remote
The wired remote connection allows all aspects of the projector to
be individually controlled without requiring a line-of-sight to the
projector; invaluable when using multiple units during live events.
Direct power off
Power off your projector immediately or directly at the main power
source. This means you don’t have to wait for the projector to cool
down before turning it off.
Control
Featuring a wide range of options, you can control and monitor the
projector remotely.
• RS232
Optoma projectors come with an extensive set of RS232 commands,
making it simple and easy to manage using any control system.
• AMX compatible
The dynamic discovery protocol is incorporated into the projector,
allowing for easy installation with AMX control systems.
• Crestron RoomView
Using the compatible RoomView® software, you can power on/off,
monitor, manage, and control up to 250 projectors at the same time
from any computer
• Extron IPLink compatible
Allows for easy installation with Extron control systems
Abundant connection ports
Projection Distance
Specification
| Key Parts |
| | Model No. | MX-DL820ST |
| Resolution | 1080P |
| Brightness(Ansi Lumen) | 8200 |
| Overall Spec |
| Panel | Display Panel | 0.65" DMD |
| Display Technology | DLP |
| Native Resolution | 1080P (1920 x 1080) |
| Light source Life time | Normal mode | 20,000hrs |
| ECO1 mode | 30,000hrs |
| Projection Lens | F | 2.4 |
| f | 9.66mm - 11.65mm |
| Zoom/Focus | Manual |
| Throw Ratio | 0.647(wide)~0.782(tele) |
| Zoom Ratio | 1.2 |
| Screen size | 80-300inch |
| Lens Shift | V:＋42%～-10%, H:±8% |
| CR | Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 39dB(Normal) 36dB(ECO) |
| Uniformity | Uniformity | 95% |
| AR | Aspect Ratio | Native:16:9 Compatible: 4:3/16:10 |
| Terminal(I/O port) |
| Input | VGA | *2 |
| HDMI 1.4B(IN) | *2 |
| HD BaseT | *1(Optional) |
| Video | *1 |
| Audio L (RCA) | *1 |
| Audio R (RCA) | *1 |
Audio in
(mini jack,3.5mm) | *1 |
| Output | VGA | *1 |
Audio out
(mini-jack,3.5mm) | *1 |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) |
| USB-B | *1 (For upgrade) |
| USB (Type A) only supports 5V | *1 |
| General Spec |
| Audio | Speaker | 10W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
Power Consumption
(Normal) (Max) | 670 |
Power Consumption
(ECO1) (Max) | 520 |
| ECO Standby Mode Power Consumption | <0.5W |
| Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m, Ambient0℃~50℃ |
| 1700m＜Altitude＜3000m, Ambient 0℃~40℃ |
| Operating Thumidity. | 20-85% |
| Store Temp. | -10 to 50°C |
| High altitude | 0~3000m |
| Other Functions |
| Keystone | Keystone Correction
(Lens@center) | V:±30°
4 Corner Correction |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery | Yes |
| LAN Control-- PJ Link | Yes |
| Others | 360° projection | Yes |
| 3D | Yes |
| Dimension&Weight |
| | Product Size (mm) | 460(W)*355(D)*142.6(H) |
| Net. Weight (KG) | ~10KG |
Packaging Size
(WxDxH mm) | 574(W)*554(D)*268(H) |
| Gross. Weight (KG) | 12.5kg |
| Accessory |
| | Standard Accessaries | Power cord, HDMI cable, Remote control |
